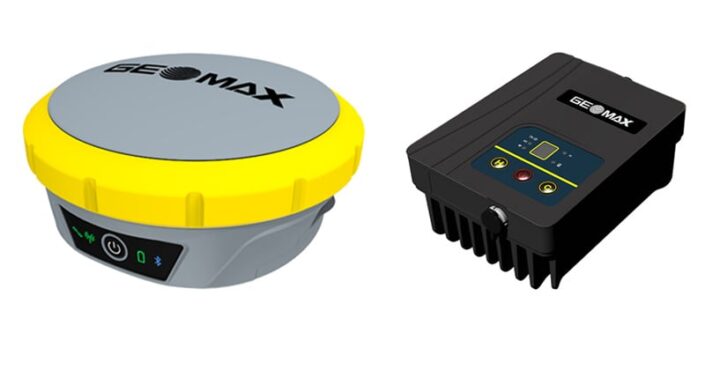

GeoMax has released its Zenith55 GNSS smart antenna and TRU35 high-power UHF radio for construction and surveying professionals.
The Zenith55 offers advanced features, efficient workflows that generate a strong return on investment, and warranty support.
Integrated into the GeoMax ecosystem, the Zenith55 works seamlessly with GeoMax robotic total stations, field controllers and the X-PAD field software for a comprehensive solution that ensures dependable precision and boosts productivity.
Zenith55 key features
• Multi-frequency – Resilient to high solar activity
• Multi-constellation – GPS, Glonass, Galileo, BeiDou, QZSS, NavIC
• Calibration-free tilt compensation
• GNSS board with 600+ channels
• Integrated LTE phone modem and UHF radio modem
• IP68 protection against dust and water
• Withstands 2 m pole topple-over
• Internal memory and microSD card storage
• GeoMax X-PAD field software
The TRU35 is an IP67-rated 30W UHF radio modem with 410-470 MHz tuning range and 12.5/25 kHz channel spacing. Buttons and LCD display allow users to select predefined configurations created with the Zenith Manager tool for Android.
The TRU radio extends the UHF RTK range up to 14 km (in favorable conditions) and is compatible with GeoMax Zenith smart antennas with base station support.
TRU35 key features
• 410 – 470 MHz frequency range
• 10 / 30 W output power
• 12.5 / 25 kHz channel spacing
• Up to 19200 bps data rate
• Protocols: Satel, TrimTalk
• Modulation: GMSK, 4FSK
• -30°C to +60°C operating temperature
• IP67 dust and waterproof
• Up to 14 km range (in favourable conditions)
The Zenith55 and the TRU35 are both available and ready for delivery.
